How to measure t slot nut?

When Lena, a fixture engineer in Brno, replaced a loose fastener in an aluminum workholding frame, the new nut spun instead of locking; a second trial cracked the slot lip when tightened. The reversal came after she measured the opening and nut body: the problem was a mismatched size and rotation profile, not a bad product.

Summary: Measure the extrusion slot opening, the nut’s width and height, the thread, and the available engagement length before ordering. Record readings in millimetres (to 0.01 mm when the instrument allows), then confirm the fit with the intended bolt. ISO 898-2 addresses mechanical properties of certain steel nuts, but it does not replace a dimensional fit check. The recommended action is to compare a measured sample with the supplier drawing and approve a test fit before production.

How t slot nuts fit an extrusion slot.

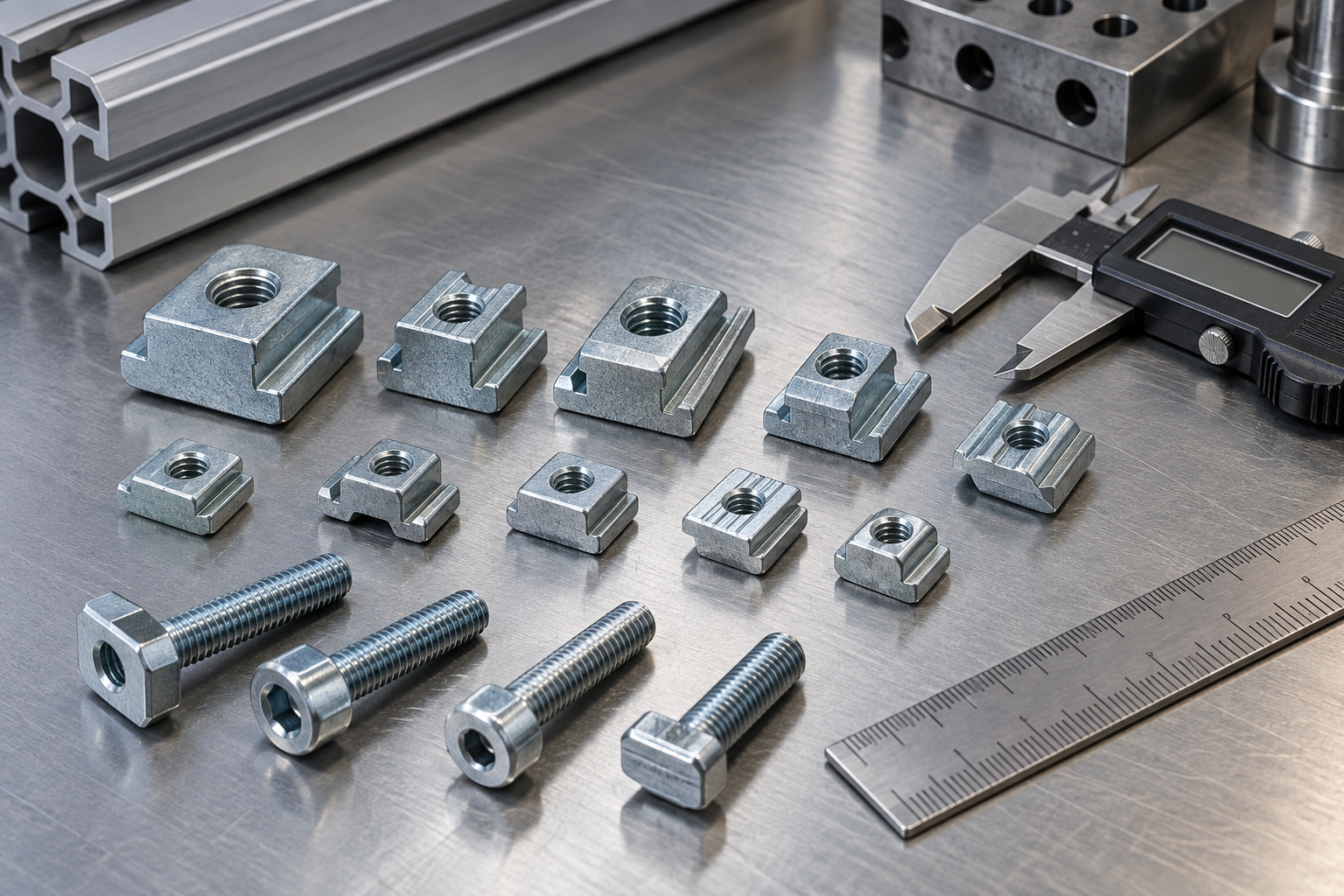

A T-slot nut must pass through or turn into the slot, present enough bearing area under the slot lips, and leave its threaded hole aligned with the assembly. Start with the slot, not the bolt: measure the opening at several points because anodizing, burrs, and extrusion variation can change the usable clearance. A digital caliper is suitable for this check; clean the jaws and keep them square to the surface.

Measure the four controlling dimensions.

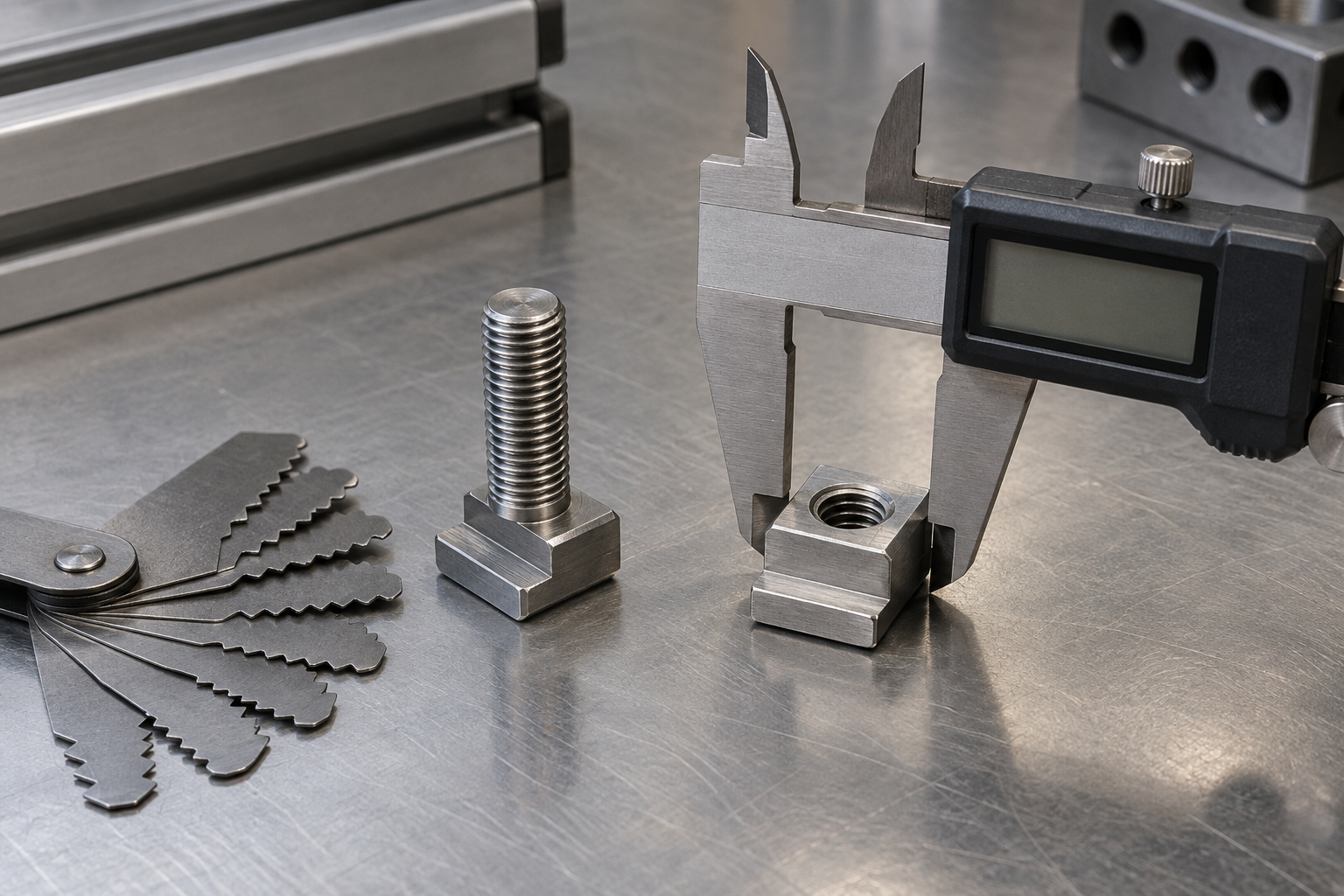

1. Slot opening: measure the narrow entry width and note any chamfer or obstruction.

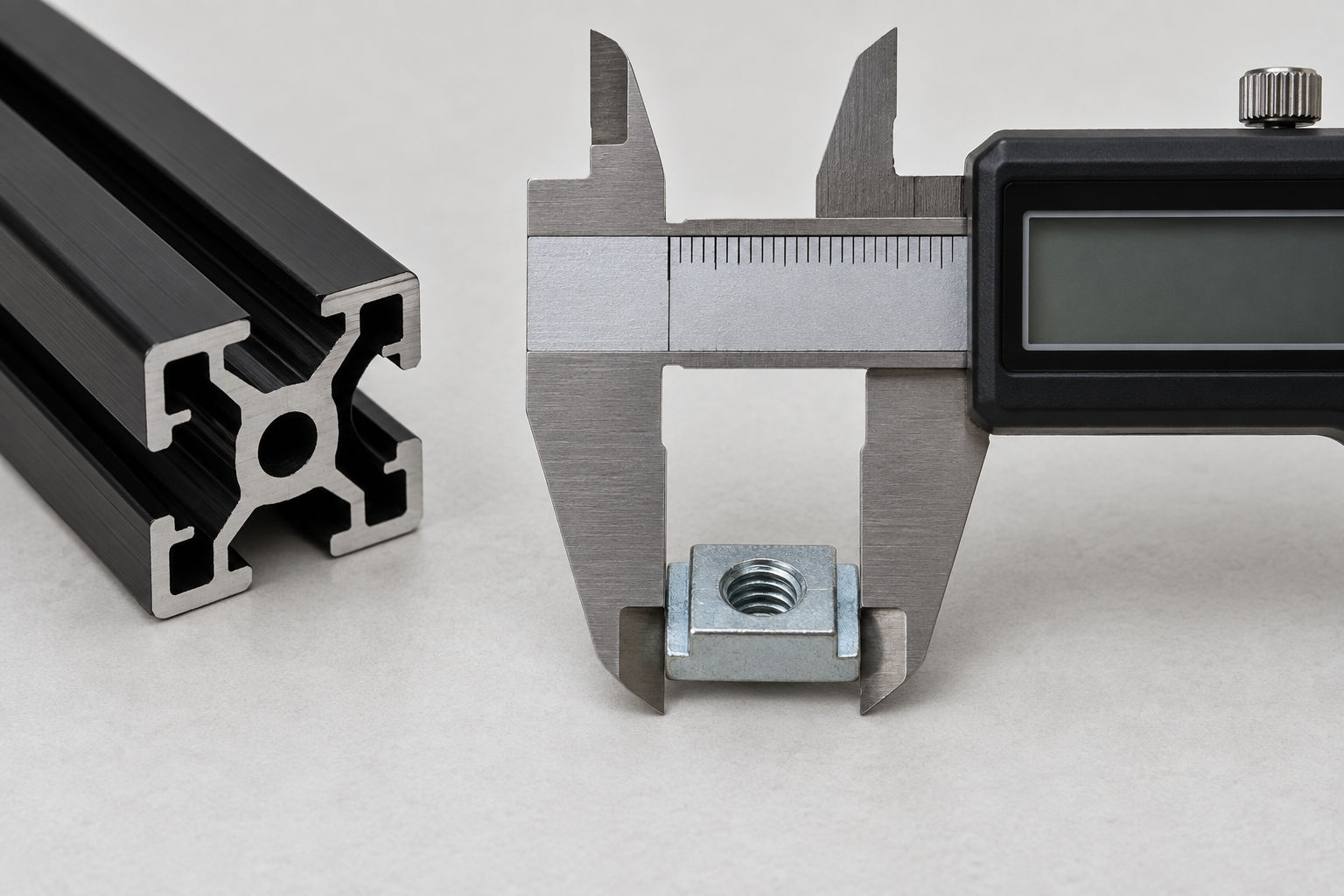

2. Nut width and height: measure the body at its bearing surfaces, not across a chamfer or spring clip.
3. Thread: identify nominal diameter and pitch with a thread gauge or a known matching bolt; do not infer pitch from diameter alone.
4. Length and rotation: record the nut length and whether it must slide, drop in, or rotate into position.

Take at least three readings on a used extrusion and retain the largest obstruction and smallest clearance in the inspection record. That simple worst-case habit is more useful than a nominal catalogue value when a frame has been cut, coated, or handled in the field.

How t slot bolts should be measured with the matching nut.

Bolts are the mating component, so measure the bolt’s nominal thread diameter and pitch, usable thread length, and head or washer clearance. A thread gauge provides a repeatable pitch check; a bolt that enters for only one or two turns is not proof of compatibility. Check the complete stack-up—bolt head, washer if used, nut thickness, and clamped parts—so the bolt does not bottom out before the joint is secure.

For a reusable frame, test the intended t slot bolts at hand-tight torque first. The nut should seat without rocking, and the bolt should advance smoothly through the full planned engagement. If a locking or spring feature is present, include it in the test because it can change insertion and rotation behaviour.

How t slotted nuts should be compared before purchase.

Measurement adds value when it prevents rework, damaged profiles, and returns. Compare the inspection method—not just the unit-cost tendency—before approving a part. For a controlled replacement, t slotted nuts should be judged by the complete interface rather than by thread label alone.

Use the application record, not a guessed size.

How t slot nuts should be selected with standards in mind.

Standards help define material or performance scope, but they do not make every extrusion nut interchangeable. ISO 898-2 covers mechanical properties of specified steel nuts; ISO 2320 covers prevailing-torque type steel nuts and their properties; and ASTM F563/F563M covers specified steel nuts in its stated scope. Treat these as standards references, not automatic product certifications. Ask for the applicable material, grade, finish, dimensional drawing, and test documentation for the exact part and destination market.

For procurement, we recommend four controls: preserve a measured sample or drawing; specify slot profile and thread separately; require a first-article fit check; and record any coating, spring, or corrosion requirement. For recurring builds, t slot nuts should carry a controlled drawing revision. When the application uses an uncommon profile, review hammer nuts for 2020 V-slot frames as a related installation reference. Qiyi Fastener can be considered when a buyer needs configurable fastener sourcing and product documentation, subject to confirmation of the requested specification.

What buyers should confirm about t slot nuts?

How does a T-slot nut work?

A T-slot nut captures the underside of an extrusion slot while its threaded hole accepts a bolt. Depending on its design, it may slide in from an open end, drop into the slot, or rotate after insertion. Confirm the insertion method and bearing surfaces on the drawing before assembly.

Are all T-slots the same size?

No. Slot opening, depth, lip geometry, and profile family vary between extrusions and manufacturers. Measure the actual profile or use its controlled drawing; matching thread size alone is insufficient.

What are the different types of T nuts?

Common types include sliding nuts, hammer or drop-in nuts, and versions with springs, balls, or clips to aid positioning. These features alter installation behaviour and may change the required clearance, so select by profile and installation method as well as thread.

What sizes are available for T-slot nuts?

Sizes are offered across different metric and imperial thread families, body dimensions, and extrusion profiles. Availability is supplier- and design-specific; request a dimensional drawing and state the thread system, pitch, profile, finish, and quantity rather than relying on a generic size label.

How buyers can take the next step with t slot nuts.

For related installation context, see the guide to t slot nuts. A controlled measurement sheet turns a replacement request into a repeatable specification: slot, body, thread, material, finish, and fit test all stay visible. Review available fastener options at Qiyi Fastener products, then contact the team with your drawing or measured sample.

Measure the interface first; the right nut is the one that fits the profile, thread, and process together.

A keps lock nut keeps the locking interface captive during handling

This washer-integrated nut is commonly a hex nut retained with an external-tooth lock washer. The washer is a separate functional element, but it remains captive on the nut while parts are picked, presented, and installed. When the joint is tightened, the teeth bear against the mating surface. That arrangement can reduce loose-component handling, yet it does not by itself establish a vibration rating, reuse limit, material grade, or universal installation torque.

The useful comparison is therefore mechanical, not merely visual. A washer-integrated nut acts at the bearing interface; an insert-type nut develops prevailing torque through a polymer insert; a serrated flange design combines an integral flange with serrations. Surface material, coating, hardness, allowed marking, joint movement, and access for tightening may change the suitability of each approach. A drawing should identify the geometry and stack-up rather than rely on a generic “locking nut” label.

For a sourcing brief, an industrial fastener manufacturers guide can help organize questions about drawings, material declarations, lot identification, and test evidence. The guide is most useful when it supports a controlled requirement; it is not a substitute for the exact part specification.

Three interface questions prevent a misleading comparison

1. Is the locking feature a captive but separate washer, a polymer insert, or an integral serrated flange?
2. Can the mating material accept the teeth or serrations without unacceptable marking, coating damage, or loss of function?
3. Does the assembly drawing reserve the required bearing diameter, clearance, thread engagement, and installation access?

These questions also expose hidden cost. A part that is easy to pick may still create rework if its teeth damage a coated surface; a part that looks interchangeable may require different inspection or installation controls. ISO 16047 can support a controlled torque–clamp-force evaluation, but a test report is meaningful only when the hardware, lubrication, tightening method, and acceptance criteria are defined.

A keps lock nut differs from a nylon insert lock nut in mechanism and evidence

The keps lock nut and the nylon insert lock nut resist loosening at different locations. In the first, the captive external-tooth washer bears on the joint surface. In the second, a polymer insert creates prevailing torque on the mating thread. Neither description alone proves performance in a particular joint, and a plain flange nut should not be presented as either one.

Reuse is a specification question for the insert design, not a universal number. The honest procurement control is to identify the governing product or application specification and use prevailing-torque test evidence for the actual part and condition. Temperature, chemicals, installation history, and the required prevailing torque can matter; do not promise a fixed reuse count simply because the insert is nylon.

Comparison of common fastening approaches

A washer-integrated nut is not automatically a prevailing-torque nut merely because it is sold as “locking.” Likewise, the flange on a plain flange nut does not create serrations. ISO 2320 is relevant when the specified solution falls within its prevailing-torque type steel-nut scope; it should not be used to infer a qualification for every external-tooth washer assembly.

A serrated flange nut changes the bearing interface and surface question

A serrated flange nut combines an integral flange with serrations intended to act at the bearing interface. This can be useful when the joint requires integrated bearing area and the mating surface can accept the serrated contact. The selection is conditional: confirm the base material, coating, permitted marking, joint duty, and applicable drawing or specification before treating a serrated flange nut as a direct replacement for a keps assembly.

A plain flange nut is different. Its flange may spread bearing load or provide a larger seating area, but it is not automatically a serrated flange nut and does not automatically resist loosening. If a purchase order says “flange nut,” the buyer should state whether serrations, a prevailing-torque feature, a separate washer, or no locking feature is intended.

For a related category reference, review flange nuts; catalogue presence still needs to be checked against the drawing, mating surface, and evidence request.

      A generic comparison highlights two different interfaces: serrations act at the bearing surface, while a nylon insert acts on the thread

Selection dimensions beyond the catalogue name

Where a design relies on measured tightening behavior, define the test hardware and acceptance criteria before requesting data. ISO 16047 names a torque/clamp-force test method; it does not certify a complete joint or guarantee the same result for a different lubricant, surface, washer arrangement, or installation sequence.

Standards for a keps lock nut define scope, testing, and evidence

ISO 2320 covers prevailing-torque type steel nuts and their mechanical and performance requirements within its stated scope. Review it when the requirement is for an applicable prevailing-torque nut, including an insert-type design where the specification calls for it. It does not automatically classify a washer-integrated nut or a serrated flange nut as a compliant prevailing-torque product.

ISO 16047 covers torque/clamp-force testing. It can be used to structure a comparison or validation plan when the purchaser defines the nut, bolt, lubrication, tightening rate, clamp length, and acceptance limits. Calling a product “tested to ISO 16047” is not the same as claiming product certification or suitability for every joint.

FAA Advisory Circular 43.13-1B addresses acceptable methods, techniques, and practices for aircraft inspection and repair in its stated context. NASA-STD-5020 addresses threaded fastening systems for NASA program use. These sources may inform controlled aerospace work, but neither is a blanket approval for a commercial fastener, a supplier, or an unspecified application. Destination market, intended use, contract language, and the exact claim determine the evidence needed.

Unsupported standards language creates practical exposure: a customer may reject a lot, an auditor may request records that do not exist, or a design team may assume a test method is a certification. Keep the product designation, applicable standard, test method, acceptance criteria, and claim wording separate in the purchasing record.

Select a keps lock nut with a documented joint requirement

1. Define the interface. State the thread, nut geometry, captive-washer or flange requirement, mating material, finish, permitted marking, and any controlled dimensions.
2. Describe the duty. Record movement, vibration, temperature, chemicals, inspection interval, and the consequence of loosening; do not use “lock nut” as the whole requirement.
3. Match evidence to risk. Request the drawing, material or finish documentation, lot identification, and any agreed prevailing-torque or ISO 16047 test plan. If reuse matters, state the governing requirement and acceptance test rather than a guessed count.
4. Approve the actual assembly. Check a representative sample with the mating component and installation method. Confirm that a serrated flange nut, plain flange nut, nylon insert design, or keps assembly has not been substituted under a broad catalogue label.

Qiyi Fastener can support a sourcing inquiry for a keps lock nut and related industrial hardware by comparing the requested drawing, materials, finishes, quantities, and documentation needs. Availability and suitability should be confirmed against the buyer’s specification; no product-specific stock, certification, or universal reuse data is assumed here.

Frequently Asked Questions

How many times can you use a nylon insert lock nut?

There is no universal reuse count that applies to every nylon insert lock nut. Reuse depends on the governing specification, the actual prevailing-torque test evidence, service conditions, and installation history. Follow the design authority’s replacement rule or qualify reuse with the specified test method.

What are the differences between a keps nut and a nylon lock nut?

A keps nut commonly uses a captive external-tooth washer whose teeth bear against the mating surface. A nylon lock nut uses a polymer insert that develops prevailing torque on the thread. Compare the surface, environment, process, and applicable evidence before substituting one for the other.

When should you use serrated flange nuts?

Use serrated flange nuts when the joint requires an integral bearing flange and the mating material, coating, allowed marking, and joint duty are compatible with serrated contact. Confirm the exact drawing or specification, because a serrated flange nut is not interchangeable with a plain flange nut or a keps assembly by name alone.

What are the differences between a nylon lock nut and a flange nut?

A nylon lock nut uses a polymer insert to create prevailing torque, while a flange nut primarily provides an integral bearing surface; a flange nut may be plain or may include a separate locking feature such as serrations. Confirm whether locking is required, where it acts, and what evidence the joint specification demands.

References

1. NASA-STD-5020B, Requirements for Threaded Fastening Systems in Spaceflight Hardware.
2. ISO 16047, Fasteners — Torque/clamp force testing.
3. FAA Advisory Circular 43.13-1B, Acceptable Methods, Techniques, and Practices — Aircraft Inspection and Repair.
4. NASA-STD-5020, Requirements for Threaded Fastening Systems in Spaceflight Hardware.

For a focused sourcing discussion, share the application, mating materials, drawing revision, quantity, and documentation needs through Qiyi Fastener’s contact page.

K Nuts use a captive washer to add locking action

A conventional K-lock assembly has two captive functional elements: a six-flat hex nut and an external-tooth lock washer. The captive washer simplifies handling because it is retained on the nut; it does not make every installation washer-free in every sense. A drawing, assembly instruction, or customer specification may still call for another interface component, coating control, or a specific bearing arrangement.

Often called K-lock or keps nuts, these assemblies are useful where assembly flow benefits from keeping the washer and nut together. The external teeth are intended to create a locking interface at the bearing surface. That description identifies geometry and function; it does not by itself establish a vibration rating, installation torque, reuse limit, temperature capability, or conformance to any standard. Those decisions remain dependent on the joint design, material pairing, finish, intended use, and the supplier’s product specification.

For buyers comparing related hardware, Qiyi’s guide to industrial fastener manufacturers is a useful reminder to obtain traceable dimensional, material, and test documentation before treating similar-looking parts as interchangeable.

Unlike an insert-style locknut, K Nuts do not depend on a polymer collar. The tooth washer acts at the joint interface, while a nylon-insert nut develops resistance through its insert. This distinction matters when a purchase order simply says “lock nut”: the buyer needs the locking mechanism, material, thread designation, finish, and applicable test or inspection requirements written into the requirement.

Where tightening behavior must be studied, ISO 16047 provides a recognized method for examining the relationship between tightening torque and clamp force in fasteners. It can inform a test plan, but it is not a blanket certification for a fastener or joint. In particular, a captive tooth-washer K-lock nut should not be described as a prevailing-torque nut by default.

Comparison of common locking approaches

For a related bearing-surface configuration, review flange nuts; a flange alone should not be assumed to provide the same locking action as an external-tooth washer or a nylon insert.

Decision table for selecting the locking method

Standards for a k lock nut define tests, not automatic approvals

ISO 2320 addresses prevailing-torque type steel nuts and the associated mechanical and performance requirements. It is the standard to examine when the specified solution is an applicable prevailing-torque, including non-metallic-insert, nut; it should not be used to automatically classify a captive tooth-washer assembly as a prevailing-torque product. Ask the supplier which product standard and test requirements apply to the exact part number.

ISO 16047 is a torque/clamp-force test method. A report using that method can be useful evidence for an agreed test plan, but “tested to ISO 16047” does not by itself mean that a product is certified for every load case or application. The relevant torque, lubrication, mating components, and acceptance criteria must be stated by the purchaser or governing specification.

For controlled industries, the governing rules may be more restrictive than general industrial purchasing practice. FAA Advisory Circular 43.13-1B concerns acceptable methods, techniques, and practices for aircraft inspection and repair in its stated context, while NASA-STD-5020 covers threaded fastening systems for NASA program use. Neither document is a shortcut to claim that an ordinary commercial K-lock nut is approved for aviation or space hardware. Destination market, intended use, and the exact marketing claim determine what compliance evidence is needed.

Select K Nuts by joint evidence before part number

1. Convert “lock nut” into a complete requirement: thread, material, finish, captive-washer geometry, mating surface, and any drawing-controlled dimensions.
2. State the joint duty and assembly process, including access, automation, and whether surface marking from external teeth is acceptable.
3. Identify whether the requirement is for a washer-integrated assembly, an insert-type prevailing-torque nut, or another locking approach; do not substitute based on a shared generic name.
4. Request the applicable product documentation and, where relevant, an agreed ISO 16047 test plan with defined hardware and acceptance criteria.

Use the term k lock nut on a purchase order only when the requested captive-washer construction is clear; otherwise, describe the locking mechanism and required evidence in full.

Qiyi Fastener can support an inquiry for K Nuts and related industrial hardware by helping procurement teams compare drawings, materials, finishes, quantities, and documentation needs before a sourcing decision. Availability and suitability should be confirmed against the requested specification.

Frequently Asked Questions

How do K-lock nuts work?

A K-lock nut commonly combines a hex nut with a captive external-tooth lock washer. As the assembly is tightened, the washer provides a locking interface at the bearing surface. The result depends on the mating surface, joint design, installation process, and the exact part specification.

Can you use a lock nut without a washer?

It depends on the lock-nut design and the joint requirement. A K-lock assembly typically eliminates the need to separately handle a loose lock washer, but a drawing or work instruction may still require a washer or another bearing component. Confirm the specified stack-up rather than removing parts by assumption.

What is the main difference between a keps nut and a nylock nut?

A keps nut is commonly a hex nut with a captive external-tooth washer, whereas a nylock nut uses a nylon insert. The locking mechanisms and their interactions with the joint are different. Select against the application conditions and the supplier’s documented specification rather than treating the names as interchangeable.

What is the difference between nut and lock nut?

A plain nut provides threaded clamping when assembled with its mating fastener. A lock nut adds a defined feature intended to resist loosening, such as a captive tooth washer, nylon insert, or an all-metal prevailing-torque feature. The feature does not replace the need to engineer and specify the complete joint.

When should a buyer ask for a k lock nut sample?

Ask for a representative sample when the mating surface, coating, access, controlled documentation, or installation process could affect the decision. Use the sample to confirm fit and the agreed inspection or test plan. Do not infer service performance from appearance alone.

References

1. NASA-STD-5020 official standard page — system-level requirements for threaded fastening systems in spaceflight hardware.
2. ISO 16047: Fasteners — Torque/clamp force testing.
3. FAA Advisory Circular 43.13-1B, Acceptable Methods, Techniques, and Practices — Aircraft Inspection and Repair.

A reliable locking choice is made at the joint definition stage, not after a loosening problem appears on the line.
