Fixed Leveling Foot

Fixed Leveling Foot

Material: Nickel/Zinc-Plated Carbon Steel Stud with Nylon Base

Category:

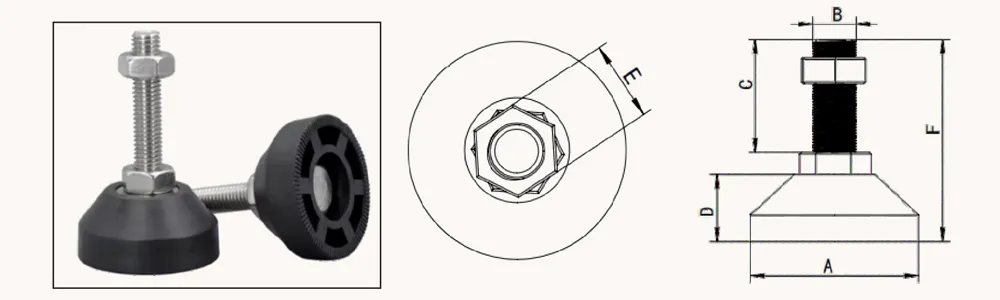

Size A(Ф) B C D E F Max Load/kg Mass(g) Part No
30-M5×30 30 M5 30 10 8 44 10 11 FL-30-05-30
30-M5×40 40 54 16 FL-30-05-40
30-M5×50 50 64 22 FL-30-05-50
30-M6×30 30 M6 30 10 9.8 45 20 15 FL-30-06-30
30-M6×40 40 55 19 FL-30-06-40
30-M6×40 50 65 24 FL-30-06-50
40-M5×30 40 M5 30 10 8 49 30 19 FL-40-05-30
40-M5×40 40 59 23 FL-40-05-40
40-M5×50 50 69 29 FL-40-05-50
40-M6×30 40 M6 30 10 10 50 50 26 FL-40-06-30
40-M6×40 40 60 34 FL-40-06-40
40-M6×50 50 70 42 FL-40-06-50
40-M8×30 40 M8 30 20 13.8 58 70 42 FL-40-08-30
40-M8×50 50 78 57.1 FL-40-08-50
40-M8×80 80 108 70 FL-40-08-80
40-M8×100 100 128 93 FL-40-08-10
40-M10×50 40 M10 50 25 17 80 80 78 FL-40-10-50
40-M10×80 80 110 92.1 FL-40-10-80
40-M10×100 100 130 102 FL-40-10-10
40-M12×50 40 M12 50 25 18.5 80 90 108.4 FL-40-12-50
40-M12×80 100 110 113.7 FL-40-12-80
40-M12×100 120 130 126 FL-40-12-10
50-M8×30 50 M8 30 26 13.8 62 100 52 FL-50-08-30
50-M8×50 50 82 64 FL-50-08-50
50-M8×80 80 112 73.7 FL-50-08-80
50-M8×100 100 132 89 FL-50-08-10
50-M10×50 50 M10 50 25 17 83 150 84 FL-50-10-50
50-M10×80 80 113 99 FL-50-10-80
50-M10×100 100 133 111 FL-50-10-10



Size A(Ф) B C D E F Max Load/kg Mass(g) Part No
50-M12×50 50 M12 50 25 19 83 150 119 FL-50-12-50
50-M12×80 80 113 122 FL-50-12-80
50-M12×100 100 133 138 FL-50-12-10
60-M8×50 60 M8 50 27 22 85 150 134 FL-60-08-50
60-M8×80 80 115 159 FL-60-08-80
60-M8×100 100 135 178 FL-60-08-10
60-M10×50 60 M10 50 25 17 86 150 153 FL-60-10-50
60-M10×80 80 116 171 FL-60-10-80
60-M10×100 100 136 186 FL-60-10-10
60-M12×50 60 M12 50 25 19 86 150 121 FL-60-12-50
60-M12×80 80 116 138 FL-60-12-80
60-M12×100 100 136 156 FL-60-12-10
60-M16×50 60 M16 50 24 22 88 150 152 FL-60-16-50
60-M16×80 80 118 168 FL-60-16-80
60-M16×100 100 138 173 FL-60-16-10
60-M16×150 150 188 191 FL-60-16-15
80-M12×100 80 M12 100 25 19 132 200 189 FL-80-12-10
80-M12×150 150 182 195 FL-80-12-15
80-M16×50 80 M16 50 27 24 83 250 289 FL-80-16-50
80-M16×100 100 133 313 FL-80-16-10
80-M16×150 150 183 356 FL-80-16-15
80-M20×100 80 M20 100 134 300 542 FL-80-20-10
80-M20×150 150 184 564 FL-80-20-15
80-M24×100 80 M24 100 136 300 642 FL-80-24-10
80-M24×150 150 186 675 FL-80-24-15
100-M16×50 100 M16 50 27 24 85 300 710 FL-10-16-50
100-M16×80 80 115 763 FL-10-16-80
100-M16×100 100 135 789 FL-10-16-10
100-M20×100 100 M20 100 136 300 861 FL-10-20-10
100-M20×150 150 186 896 FL-10-20-15
100-M24×100 100 M24 100 138 300 973 FL-10-24-10
100-M20×150 150 188 998 FL-10-24-15
